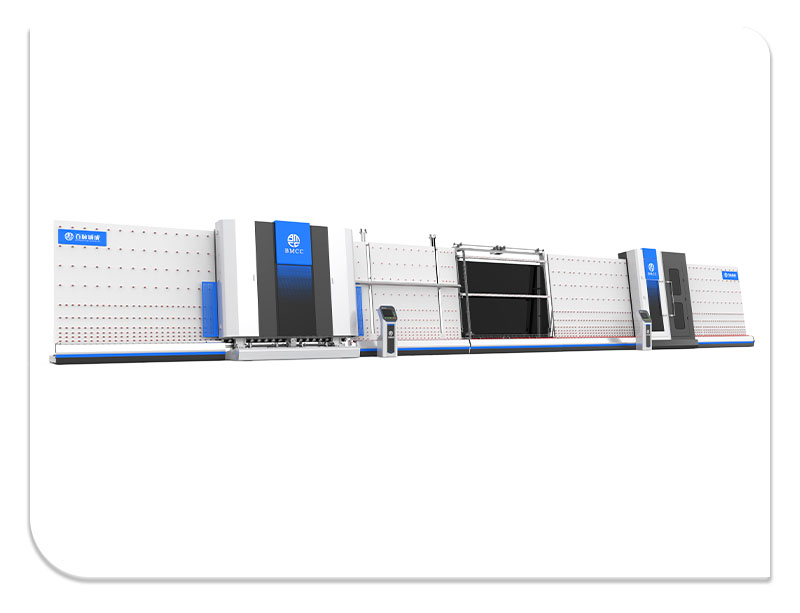

Blind Production Line
BMCC (Jinan BaiMai ChengCheng Machinery) designs insulating glass blind production lines for Chinese manufacturers. Our cost-effective solutions deliver ≥90% gas filling concentration and 3–10m/min cleaning speed with ISO certification. Ideal for built-blind insulating glass mass production. Contact us for factory-direct pricing and OEM support.
Send Inquiry
Product Description
As a Jinan-based equipment manufacturer, BMCC focuses on practical solutions for domestic glass processors. This production line integrates glass washing, spacer/blind assembly, laminating, inert gas filling, and pressing. It handles glass sizes from 400×500mm up to 2000×2500mm with a maximum unit thickness of 85mm. Servo-driven and intelligently controlled, it replaces manual assembly and boosts efficiency for small-to-medium production lines.
Why Choose Our Blind Production Line ? (Key Advantages)
1.Unmatched Configuration: Premium mix of international and top domestic brands ensures reliability.
2.Efficient Filling & Pressing: Digitally controlled pressing thickness, servo-driven plate press – high speed and accuracy.
3.Energy Saving & Eco-Friendly: Water tank auto-refill and heating; VFD on fan reduces frequency to 15Hz when no glass passes, saving 17.8 kWh per hour.
4.Full Automation: Inovance PLC + Weinview HMI automatically measures glass and spacer thickness – no manual input needed.
5.Robust Construction: Washing tank, mounting plates, chains made of 304 stainless steel; heavy-duty conveying rollers prevent small glass jamming.
Premium Component Configuration
Note: Key components and certain configurations listed above can be customized according to customer requirements (e.g., different brands, higher power, or special functions).
Detailed Product Description
Designed specifically for built-blind insulating glass, this line seamlessly connects washing to laminating & gas filling.
1.Loading Section
● Glass thickness measurement automatically adjusts brush/air knife gap.
● Maintenance ladder for easy access to washing section.
2.Washing Section
● 3 pairs of LOW-E brushes (3 front, 3 rear), 3 spray pipes, 2 circulating pumps, 1 tank (with water heating).
● 6 brush motors with 6 VFDs – stable for coated glass.
● Servo-driven brush/air knife gap adjustment (3–30mm glass).
● High-density heavy-duty rollers prevent small glass jamming.
● Washing tank, mounting plates, chains: 304 stainless steel; universal nozzles easy to clean.
● Baffle before drying section & water shield after air knife – avoid stains.
● Air knife: large-volume streamlined duct, flow 15380mm³/s.
● Drying section sound-insulated; high-pressure centrifugal silent fan (18.5kW, VFD start, auto frequency reduction to 15Hz when no glass).
● Butterfly valve + inlet filter on air duct; fan with heating.
● Auto water refill for tank.
3.Spacer & Blind Loading Section
● Open structure with internal stairs and inspection light bar for backside glass cleaning check.
● System pause/start button to handle abnormal glass.
4.Laminating & Gas Filling Section
● Max glass 2000×2500mm, min 400×500mm, max unit thickness 85mm.
● Inner positioning: servo motor + potentiometer + flexible positioning – no misalignment.
● Chamber-partitioned + air-curtain bottom filling, concentration ≥90%, auto open/close filling ports based on glass length.
● Plate pressing by servo motor, digital thickness control – fast & accurate.
● Double-layer design for front/rear pressing plates, flatness adjustable.
● Supports double-glass and triple-glass with two cavities.
● Gas filling screen with on/off switch – no need to manually operate rear valve.
5.Conveying Section
● Heavy-duty mechanical structure, chain conveyor.
● Multi-cavity laminated glass can receive secondary spacer or inspection on this section.
Operating Instructions (Summary)
1.Load: Place glass vertically on loading section – automatic thickness measurement.
2.Wash: Glass passes through washing section; brushes/air knife adapt to thickness.
3.Load spacer/blind: Manually place aluminum spacer and built-in blind (or automatic positioning).
4.Laminate & Fill: System automatically measures glass and spacer thickness; servo inner positioning; chamber filling to ≥90% concentration; then plate pressing.
5.Unload: Conveyed to unloading section – finished unit ready for optional sealing.
Safety Precautions
● Do not reach into washing or pressing areas during operation.
● Operators must wear protective gloves and goggles.
● Regularly clean air knife filters and water tank.
● Ensure ventilation when using inert gas for filling.
● Only trained personnel may operate or service the machine.
Why Partner with Jinan Baimai Chengcheng?
● Experience: Founded in 2003, provincial high-tech & “Specialized and Sophisticated” enterprise.
● Certification: ISO 9001 quality management.
● Global Reach: Equipment trusted by customers worldwide.
● Support: Technical training, phone guidance, remote control, on-site service.
● Commitment: “Everything for our customers”.
Call to Action
Ready to revolutionize your built-blind insulating glass production?
Contact us today for a detailed brochure, personalized quotation, or live demonstration!
Jinan Baimai Chengcheng Machinery Co., Ltd.
1.Unmatched Configuration: Premium mix of international and top domestic brands ensures reliability.
2.Efficient Filling & Pressing: Digitally controlled pressing thickness, servo-driven plate press – high speed and accuracy.
3.Energy Saving & Eco-Friendly: Water tank auto-refill and heating; VFD on fan reduces frequency to 15Hz when no glass passes, saving 17.8 kWh per hour.
4.Full Automation: Inovance PLC + Weinview HMI automatically measures glass and spacer thickness – no manual input needed.
5.Robust Construction: Washing tank, mounting plates, chains made of 304 stainless steel; heavy-duty conveying rollers prevent small glass jamming.
Premium Component Configuration
| Component | Brand | Advantage |
| PLC & Expansion Module | Inovance | Stable, precise logic control |
| VFD | Inovance | 6 brush motors individually controlled |
| Servo Motor | Inovance | Fast response, positioning ≤±0.1mm |
| Circuit Breaker/Contactor | LS (Korea) | Reliable circuit protection |
| Relay/Proximity Switch | Schneider (France) | Industry gold standard for durability |
| Photoelectric Switch | Phoenix (Korea) | Accurate sensing for automation |
| Solenoid Valve | AirTAC (Taiwan) | Stable pneumatic control, long life |
| HMI | Weinview (Taiwan) | User friendly interface, easy parameter adj. |
| Washing Tank / Air Knife | 304SS / Custom | Corrosion resistant; airflow 15380mm³/s |
| High Pressure Centrifugal Fan | Domestic top | 18.5kW energy saving, <90dB, with heating |
| Conveyor Motor | Dabang | Heavy duty chain drive, 0–45m/min |
Detailed Product Description
Designed specifically for built-blind insulating glass, this line seamlessly connects washing to laminating & gas filling.
1.Loading Section
● Glass thickness measurement automatically adjusts brush/air knife gap.
● Maintenance ladder for easy access to washing section.
2.Washing Section
● 3 pairs of LOW-E brushes (3 front, 3 rear), 3 spray pipes, 2 circulating pumps, 1 tank (with water heating).
● 6 brush motors with 6 VFDs – stable for coated glass.
● Servo-driven brush/air knife gap adjustment (3–30mm glass).
● High-density heavy-duty rollers prevent small glass jamming.
● Washing tank, mounting plates, chains: 304 stainless steel; universal nozzles easy to clean.
● Baffle before drying section & water shield after air knife – avoid stains.
● Air knife: large-volume streamlined duct, flow 15380mm³/s.
● Drying section sound-insulated; high-pressure centrifugal silent fan (18.5kW, VFD start, auto frequency reduction to 15Hz when no glass).
● Butterfly valve + inlet filter on air duct; fan with heating.
● Auto water refill for tank.
3.Spacer & Blind Loading Section
● Open structure with internal stairs and inspection light bar for backside glass cleaning check.
● System pause/start button to handle abnormal glass.
4.Laminating & Gas Filling Section
● Max glass 2000×2500mm, min 400×500mm, max unit thickness 85mm.
● Inner positioning: servo motor + potentiometer + flexible positioning – no misalignment.
● Chamber-partitioned + air-curtain bottom filling, concentration ≥90%, auto open/close filling ports based on glass length.
● Plate pressing by servo motor, digital thickness control – fast & accurate.
● Double-layer design for front/rear pressing plates, flatness adjustable.
● Supports double-glass and triple-glass with two cavities.
● Gas filling screen with on/off switch – no need to manually operate rear valve.
5.Conveying Section
● Heavy-duty mechanical structure, chain conveyor.
● Multi-cavity laminated glass can receive secondary spacer or inspection on this section.
Operating Instructions (Summary)
1.Load: Place glass vertically on loading section – automatic thickness measurement.
2.Wash: Glass passes through washing section; brushes/air knife adapt to thickness.
3.Load spacer/blind: Manually place aluminum spacer and built-in blind (or automatic positioning).
4.Laminate & Fill: System automatically measures glass and spacer thickness; servo inner positioning; chamber filling to ≥90% concentration; then plate pressing.
5.Unload: Conveyed to unloading section – finished unit ready for optional sealing.
Safety Precautions
● Do not reach into washing or pressing areas during operation.
● Operators must wear protective gloves and goggles.
● Regularly clean air knife filters and water tank.
● Ensure ventilation when using inert gas for filling.
● Only trained personnel may operate or service the machine.
Why Partner with Jinan Baimai Chengcheng?
● Experience: Founded in 2003, provincial high-tech & “Specialized and Sophisticated” enterprise.
● Certification: ISO 9001 quality management.
● Global Reach: Equipment trusted by customers worldwide.
● Support: Technical training, phone guidance, remote control, on-site service.
● Commitment: “Everything for our customers”.
Call to Action
Ready to revolutionize your built-blind insulating glass production?
Contact us today for a detailed brochure, personalized quotation, or live demonstration!
Jinan Baimai Chengcheng Machinery Co., Ltd.
Product Parameter
| Item | Parameter |
| Power Supply | 380V 50Hz |
| Total Power | 35kW |
| Working Air Pressure | 0.6–0.8MPa |
| Max Glass Size (filling/laminating) | 2000mm × 2500mm |
| Min Glass Size | 400mm × 500mm |
| Max IGU Thickness | 85mm |
| Single Glass Thickness | 3–30mm |
| Washing Speed | 3–10m/min |
| Conveying Speed | 0–45m/min |
| Gas Filling Concentration | ≥90% |
| Sealing Speed (optional) | 0–45m/min |
| Sealing Depth / Width | 5–25mm / 6–27mm |
| Sealant Pressure | 8–30MPa |
Note: Processing glass dimensions can be customized according to your workshop layout and production requirements. Please consult our sales engineer for details.
Product Feature
● Precision Gas Filling: Chamber-partitioned + air-curtain bottom filling, concentration ≥90%, automatic opening/closing of filling ports based on glass length – saves gas significantly.
● Intelligent Washing: 3 pairs of LOW-E brushes + 3 spray pipes, brush/air knife gap automatically adjusted by servo (glass thickness 3–30mm) for perfect cleaning.
● Stable Laminating: Servo-driven inner positioning and plate pressing, supports double-glass and triple-glass with two cavities, no misalignment.
● Applications:
○ Architectural windows & doors – built-blind insulating glass
○ Curtain walls – high insulation shading components
○ Passive houses – gas-filled blind windows with high airtightness
● Intelligent Washing: 3 pairs of LOW-E brushes + 3 spray pipes, brush/air knife gap automatically adjusted by servo (glass thickness 3–30mm) for perfect cleaning.
● Stable Laminating: Servo-driven inner positioning and plate pressing, supports double-glass and triple-glass with two cavities, no misalignment.
● Applications:
○ Architectural windows & doors – built-blind insulating glass
○ Curtain walls – high insulation shading components
○ Passive houses – gas-filled blind windows with high airtightness
