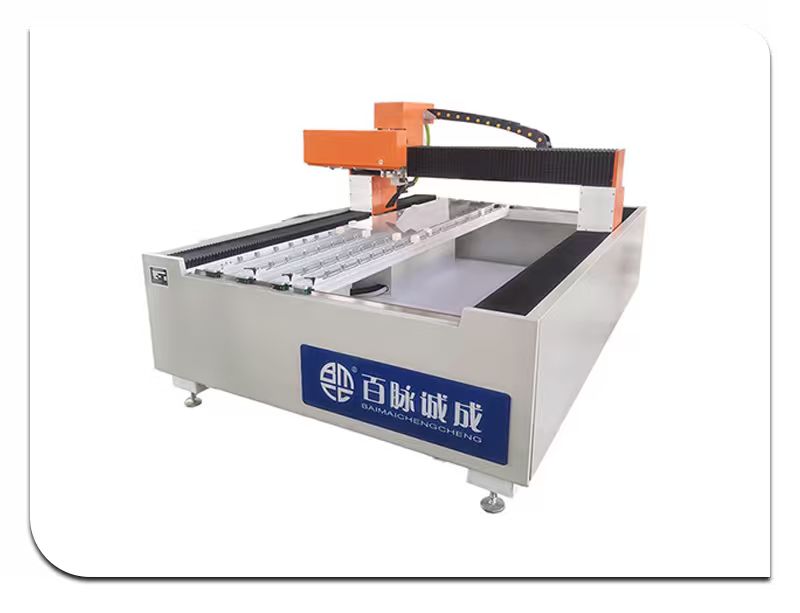

Customized Horizontal Laser Sandblasting Machine
BMCC (Jinan Baimai Chengcheng Machinery Co., Ltd.)is a Chinese manufacturer designing Customized Horizontal Laser Sandblasting Machines. Our customized horizontal laser sandblasting machine delivers±0.1mm precision, 300% efficiency improvement, and 100% reduction in consumable costs, offering comprehensive benefits far exceeding traditional equipment. The machine holds CE certification. It is suitable for architectural decorative glass, electronic glass, craft glass, and more, with flexible configurations to meet specific production requirements.Contact us for factory-direct prices and OEM support.
Send Inquiry
Product Description
As an equipment manufacturer headquartered in Jinan, BMCC focuses on providing practical solutions for domestic glass processors. Our customized horizontal laser sandblasting machine features a horizontal worktable design that facilitates easy loading and unloading of large glass panels. It works by focusing a high-energy-density laser beam directly onto the glass surface, instantly heating and vaporizing microscopic particles of the glass to create a uniform frosted or etched effect. Suitable for glass thicknesses of 3-12mm(customizable for thicker glass), it can replace traditional sandblasting processes on medium to large-sized production lines. The horizontal configuration is ideal for processing oversized glass panels with minimal operator effort.
Product Details: Customized Horizontal Laser Sandblasting Machine
Manufacturer:Jinan Baimai Chengcheng Machinery Co., Ltd. (BMCC)
Core Advantages:Customizable Size, Horizontal Design, High Precision, High Efficiency, Environmentally Friendly.
1. Why Choose Our Customized Horizontal Laser Sandblasting Machine ? (Key Advantages)
Our machine is designed to set a new standard for glass surface etching and frosting. Here is why our solution stands out in the global market:
Unmatched Configuration (The Heart of the Machine):We utilize a premium combination of top-tier international and leading domestic brands, ensuring reliability and performance.
Customizable Horizontal Design:Unlike standard machines with fixed dimensions, our horizontal laser sandblasting machine can be customized in size to accommodate your specific glass processing requirements. The horizontal worktable provides stable support for large glass panels and allows for seamless integration into existing production lines.
Exceptional Precision & Cleanliness:Laser technology achieves micron-level precision (±0.1mm), ensuring etching and frosting are performed without damaging the glass substrate. Perfect for intricate patterns and sharp edge definition.
High Efficiency & Automation:Our advanced control system allows for one-step molding of various complex patterns, eliminating the need for subsequent film application or masking. Processing speeds significantly exceed traditional sandblasting methods.
Environmentally Friendly:As a dry etching process, it generates no chemical waste, abrasive dust, or water pollution. The integrated dust extraction system captures minimal particulates, keeping your workshop clean and compliant with environmental regulations.
Cost-Effective Operation:Zero consumable costs (no sand, no masks, no chemicals) and minimal maintenance requirements provide rapid return on investment.
2. Premium Component Configuration (Our Competitive Advantage)
We believe in transparency and quality. Here is the power behind our machine:
3. Detailed Product Description
The Customized Horizontal Laser Sandblasting Machine utilizes a high-energy laser beam to etch and frost glass surfaces, progressively replacing the highly polluting and consumable-intensive mechanical sandblasting process. Its horizontal configuration is specifically designed for efficient processing of large glass panels.
Customizable Processing Area:The machine can be manufactured with working areas tailored to your specific needs, from compact sizes for smaller pieces up to large formats suitable for architectural glass panels. Horizontal design supports glass of various dimensions without height restrictions.
Versatility:Easily handles rectangular and irregularly shaped glass of all sizes. No tool changes are required; simply modify the software program. The horizontal worktable accommodates heavy glass panels with ease.
Intelligent Control:The SYNTEC motion controller and servo system work in tandem to guide the laser head with high precision across the entire horizontal work surface. Advanced software optimizes processing paths for maximum efficiency.
Ergonomic Operation:The horizontal design allows operators to easily position glass using overhead cranes or manual handling systems. Multiple glass sheets can be processed in a single cycle by arranging them on the worktable.
Complete Solution:From the high-quality JPT laser beam to the OuYa galvanometer scanning, every component is optimized for seamless performance in your specific application.
4. Operating Instructions (Summary)
Our machine is designed for ease of use:
1.Setup:Place the glass sheet onto the horizontal worktable. The work surface provides stable support. Optional automatic positioning systems can be integrated.
2.Programming:Use the SYNTEC control panel to select pre-programmed shapes (rectangle, triangle, curve, etc.) or import your custom DXF/BMP file. The intuitive software simplifies pattern creation.
3.Parameter Adjustment:Set laser power, speed, and number of passes based on the glass type and desired effect (adjustable via the touchscreen). Presets can be saved for recurring jobs.
4.Execution:Start the machine. The laser head, guided by the OuYa galvanometer and SYNTEC controller, will automatically scan and etch the pattern across the horizontal work surface.
5.Removal:Upon process completion, the laser stops automatically. Remove the finished glass from the horizontal worktable. Multiple pieces can be processed in one cycle for batch production.
5. Precautions & Safety
Safety is paramount when operating laser equipment.
Laser Safety:NEVERlook directly into the laser beam or its reflections. The machine must be operated in a designated safe area with proper laser safety enclosures.
Protective Equipment:Operators should wear appropriate laser safety eyewear during maintenance or close-up inspection.
Ventilation:Ensure the dust extraction system is functioning correctly to remove any ablated particles.
Cooling:Regularly check the TEYU chiller to ensure water temperature and level are within specified limits. Clean cooling filters monthly.
Maintenance:Keep the CSDQ field lens and OuYa galvanometer window clean to maintain optimal laser performance. Clean optical components using approved methods only.
Work Area:Maintain clear access around the horizontal worktable. Ensure proper lighting for safe operation.
Qualified Personnel:Only trained personnel should operate or service the machine.
6. Why Choose Jinan Baimai Chengcheng Machinery?
Experience:Established in 2003, we are a high-tech enterprise with nearly 20 years of experience in glass processing machinery.
Certification:We hold ISO 9001 Quality Management System Certification. Our products meet CE standards.
Customization Expertise:We specialize in tailoring equipment to customer requirements, including custom sizes, configurations, and automation levels.
Global Reach:Our equipment is trusted by customers worldwide, from small workshops to large manufacturing facilities.
Support:We provide comprehensive technical support, video tutorials, and can dispatch engineers for installation and training when needed.
Commitment:"Customer First" is our motto. We are dedicated to providing you with the best equipment and after-sales service.
7. Call to Action
Ready to revolutionize your glass sandblasting process with a customized horizontal solution designed specifically for your production needs?
Contact us today to discuss your requirements, request a detailed manual, receive a personalized quote, or schedule a live demonstration!
Jinan Baimai Chengcheng Machinery Co., Ltd.
Product Details: Customized Horizontal Laser Sandblasting Machine
Manufacturer:Jinan Baimai Chengcheng Machinery Co., Ltd. (BMCC)
Core Advantages:Customizable Size, Horizontal Design, High Precision, High Efficiency, Environmentally Friendly.
1. Why Choose Our Customized Horizontal Laser Sandblasting Machine ? (Key Advantages)
Our machine is designed to set a new standard for glass surface etching and frosting. Here is why our solution stands out in the global market:
Unmatched Configuration (The Heart of the Machine):We utilize a premium combination of top-tier international and leading domestic brands, ensuring reliability and performance.
Customizable Horizontal Design:Unlike standard machines with fixed dimensions, our horizontal laser sandblasting machine can be customized in size to accommodate your specific glass processing requirements. The horizontal worktable provides stable support for large glass panels and allows for seamless integration into existing production lines.
Exceptional Precision & Cleanliness:Laser technology achieves micron-level precision (±0.1mm), ensuring etching and frosting are performed without damaging the glass substrate. Perfect for intricate patterns and sharp edge definition.
High Efficiency & Automation:Our advanced control system allows for one-step molding of various complex patterns, eliminating the need for subsequent film application or masking. Processing speeds significantly exceed traditional sandblasting methods.
Environmentally Friendly:As a dry etching process, it generates no chemical waste, abrasive dust, or water pollution. The integrated dust extraction system captures minimal particulates, keeping your workshop clean and compliant with environmental regulations.
Cost-Effective Operation:Zero consumable costs (no sand, no masks, no chemicals) and minimal maintenance requirements provide rapid return on investment.
2. Premium Component Configuration (Our Competitive Advantage)
We believe in transparency and quality. Here is the power behind our machine:
| Component | Brand | Advantage |
| Control System & Servo Drive | SYNTEC (Taiwan) | Globally renowned for stability, high precision, and smooth motion control. Ensures perfect path tracking across the entire horizontal work area. |
| Laser Source | JPT (Shenzhen) | High quality, stable beam profile, long lifespan, and excellent electro-optical conversion efficiency. Power options customizable for your application. |
| Galvanometer (Scanning Head) | OuYa | High-speed, precise, and stable scanning performance. An industry standard for reliability. Configured for optimal coverage of your custom work area. |
| F-Theta Field Lens | CSDQ | Ensures uniform focus and high-quality beam transmission across the entire working area. Customized to match your specific processing dimensions. |
| Chiller | TEYU | Provides stable temperature control, protecting the laser source and ensuring continuous 24/7 operation. Sized appropriately for your selected laser power. |
| Touch Screen HMI | Chuangying | User-friendly interface for easy operation, monitoring, and parameter adjustment. Customized layouts available for your specific workflow. |
| Guide Rails & Ball Screws | High-Precision (China) | Ensures structural rigidity and positioning accuracy of the machine. Heavy-duty components for the horizontal configuration. |
| Standard Motor | AIERFA | Robust and reliable performance for auxiliary functions. |
| Reducer (Gearbox) | Qijun | Efficient power transmission with low noise. |
| Low Voltage Apparatus | LS (Korea) | A trusted global brand for circuit protection and control. |
| Relays | Schneider (France) | The industry gold standard for electrical safety and durability. |
| Photoelectric Switches | AUTONICS (Korea) | Precise sensing and detection for automated workflows. |
3. Detailed Product Description
The Customized Horizontal Laser Sandblasting Machine utilizes a high-energy laser beam to etch and frost glass surfaces, progressively replacing the highly polluting and consumable-intensive mechanical sandblasting process. Its horizontal configuration is specifically designed for efficient processing of large glass panels.
Customizable Processing Area:The machine can be manufactured with working areas tailored to your specific needs, from compact sizes for smaller pieces up to large formats suitable for architectural glass panels. Horizontal design supports glass of various dimensions without height restrictions.
Versatility:Easily handles rectangular and irregularly shaped glass of all sizes. No tool changes are required; simply modify the software program. The horizontal worktable accommodates heavy glass panels with ease.
Intelligent Control:The SYNTEC motion controller and servo system work in tandem to guide the laser head with high precision across the entire horizontal work surface. Advanced software optimizes processing paths for maximum efficiency.
Ergonomic Operation:The horizontal design allows operators to easily position glass using overhead cranes or manual handling systems. Multiple glass sheets can be processed in a single cycle by arranging them on the worktable.
Complete Solution:From the high-quality JPT laser beam to the OuYa galvanometer scanning, every component is optimized for seamless performance in your specific application.
4. Operating Instructions (Summary)
Our machine is designed for ease of use:
1.Setup:Place the glass sheet onto the horizontal worktable. The work surface provides stable support. Optional automatic positioning systems can be integrated.
2.Programming:Use the SYNTEC control panel to select pre-programmed shapes (rectangle, triangle, curve, etc.) or import your custom DXF/BMP file. The intuitive software simplifies pattern creation.
3.Parameter Adjustment:Set laser power, speed, and number of passes based on the glass type and desired effect (adjustable via the touchscreen). Presets can be saved for recurring jobs.
4.Execution:Start the machine. The laser head, guided by the OuYa galvanometer and SYNTEC controller, will automatically scan and etch the pattern across the horizontal work surface.
5.Removal:Upon process completion, the laser stops automatically. Remove the finished glass from the horizontal worktable. Multiple pieces can be processed in one cycle for batch production.
5. Precautions & Safety
Safety is paramount when operating laser equipment.
Laser Safety:NEVERlook directly into the laser beam or its reflections. The machine must be operated in a designated safe area with proper laser safety enclosures.
Protective Equipment:Operators should wear appropriate laser safety eyewear during maintenance or close-up inspection.
Ventilation:Ensure the dust extraction system is functioning correctly to remove any ablated particles.
Cooling:Regularly check the TEYU chiller to ensure water temperature and level are within specified limits. Clean cooling filters monthly.
Maintenance:Keep the CSDQ field lens and OuYa galvanometer window clean to maintain optimal laser performance. Clean optical components using approved methods only.
Work Area:Maintain clear access around the horizontal worktable. Ensure proper lighting for safe operation.
Qualified Personnel:Only trained personnel should operate or service the machine.
6. Why Choose Jinan Baimai Chengcheng Machinery?
Experience:Established in 2003, we are a high-tech enterprise with nearly 20 years of experience in glass processing machinery.
Certification:We hold ISO 9001 Quality Management System Certification. Our products meet CE standards.
Customization Expertise:We specialize in tailoring equipment to customer requirements, including custom sizes, configurations, and automation levels.
Global Reach:Our equipment is trusted by customers worldwide, from small workshops to large manufacturing facilities.
Support:We provide comprehensive technical support, video tutorials, and can dispatch engineers for installation and training when needed.
Commitment:"Customer First" is our motto. We are dedicated to providing you with the best equipment and after-sales service.
7. Call to Action
Ready to revolutionize your glass sandblasting process with a customized horizontal solution designed specifically for your production needs?
Contact us today to discuss your requirements, request a detailed manual, receive a personalized quote, or schedule a live demonstration!
Jinan Baimai Chengcheng Machinery Co., Ltd.
Product Parameter
| Item | Parameter |
| Laser Source | JPT Fiber Laser (Customizable power) |
| Max Output Power | 120W / 300W / 500W / Customizable |
| Laser Wavelength | 1064 nm |
| Processing Speed | Customizable (varies by glass type and pattern complexity) |
| Working Area | Customizable (e.g., 1500mm x 2500mm, 2000mm x 3000mm, 2500mm x 4000mm) |
| Machine Configuration | Horizontal worktable design |
| Max Glass Thickness | 3-12mm (Customizable for thicker glass) |
| Positioning Accuracy | ≤ ±0.1 mm |
| Repeat Positioning Accuracy | ≤ ±0.05 mm |
| Supported Formats | PLT, DXF, BMP, AI, DST, etc. |
| Cooling System | Integrated constant-temperature chiller (TEYU) |
| Control Interface | Chuangying HMI (Customizable layout) |
| Power Supply | According to customer specifications |
| Machine Dimensions | Customized based on working area requirements |
Product Feature
Environmentally Friendly & Precise:Laser ablation replaces chemical solvents and abrasive materials, reducing environmental impact by an estimated70%and eliminating consumable costs entirely.
Horizontal Worktable Design:Ergonomically designed horizontal processing surface allows for easy positioning and handling of large glass sheets, reducing operator fatigue and improving workflow efficiency.
Smart Automation:AI-driven path planning adapts to complex glass contours with minimal programming required.
Customizable Configuration:Machine size, laser power, and automation level can be tailored to match your specific production requirements and available floor space.
Application Areas:
Architectural Decorative Glass:Large-format patterned glass for building facades, partitions, and interior design elements.
Smart Home:Decorative patterns on smart bathroom mirrors, pattern sandblasting on induction cooker glass, and custom designs for home appliances.
Consumer Electronics:Logo processing on mobile phone covers, smart wearables glass components.
Furniture Glass:Custom designs for tabletops, shelving, and cabinet doors.
Art & Craft Glass:Intricate patterns and artistic designs for decorative pieces.
Horizontal Worktable Design:Ergonomically designed horizontal processing surface allows for easy positioning and handling of large glass sheets, reducing operator fatigue and improving workflow efficiency.
Smart Automation:AI-driven path planning adapts to complex glass contours with minimal programming required.
Customizable Configuration:Machine size, laser power, and automation level can be tailored to match your specific production requirements and available floor space.
Application Areas:
Architectural Decorative Glass:Large-format patterned glass for building facades, partitions, and interior design elements.
Smart Home:Decorative patterns on smart bathroom mirrors, pattern sandblasting on induction cooker glass, and custom designs for home appliances.
Consumer Electronics:Logo processing on mobile phone covers, smart wearables glass components.
Furniture Glass:Custom designs for tabletops, shelving, and cabinet doors.
Art & Craft Glass:Intricate patterns and artistic designs for decorative pieces.
