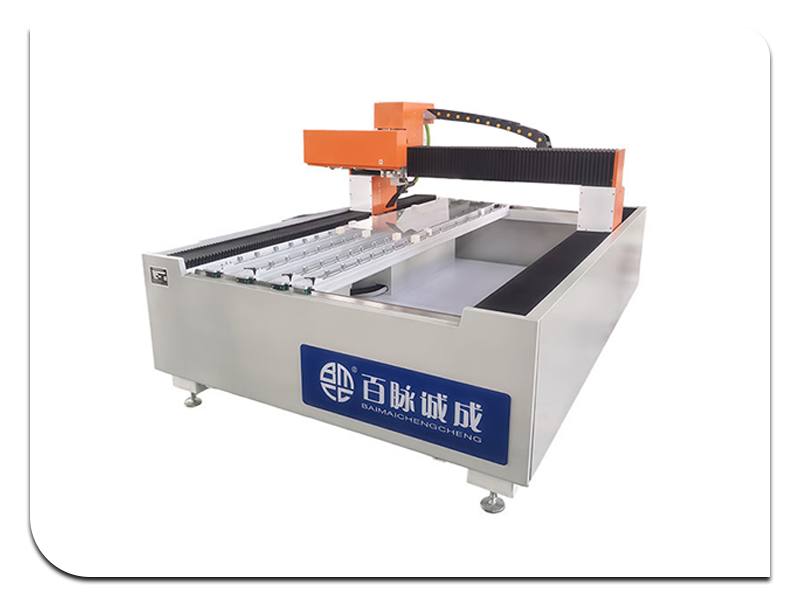

Automatic Laser Sandblasting Machine
BMCC (Jinan Baimai Chengcheng Machinery Co., Ltd.)is a Chinese manufacturer designing Automatic Laser Sandblasting Machines. Our automatic laser sandblasting machine delivers±0.1mm precision, 300% efficiency improvement, and 100% reduction in consumable costs, offering comprehensive benefits far exceeding traditional equipment. The machine holdsCE certification. It is suitable for architectural decorative glass, electronic glass, craft glass, and more, with fully automated operation for high-volume production environments.Contact us for factory-direct prices and OEM support.
Send Inquiry
Product Description
As an equipment manufacturer headquartered in Jinan, BMCC focuses on providing practical solutions for domestic glass processors. Our automatic laser sandblasting machine features advanced automation technology including auto-loading, auto-positioning, and auto-unloading capabilities for seamless integration into production lines. It works by focusing a high-energy-density laser beam directly onto the glass surface, instantly heating and vaporizing microscopic particles of the glass to create a uniform frosted or etched effect. Suitable for glass thicknesses of 3-12mm, it can replace traditional sandblasting processes on medium to large-sized production lines with fully automated workflow requiring minimal operator intervention.
Product Details: Automatic Laser Sandblasting Machine
Manufacturer:Jinan Baimai Chengcheng Machinery Co., Ltd. (BMCC)
Core Advantages:Fully Automatic Operation, Production Line Integration, High Precision, Minimal Labor Requirement.
1. Why Choose Our Automatic Laser Sandblasting Machine ? (Key Advantages)
Our machine is designed to set a new standard for glass surface etching and frosting. Here is why our solution stands out in the global market:
Unmatched Configuration (The Heart of the Machine):We utilize a premium combination of top-tier international and leading domestic brands, ensuring reliability and performance in continuous 24/7 automated operation.
Fully Automated Workflow:From automatic glass loading to precise positioning, laser processing, and finished product unloading, every step is fully automated. One operator can manage multiple machines simultaneously, dramatically reducing labor costs.
Production Line Integration:Designed with standard interfaces for seamless connection to washing machines, conveyors, and other glass processing equipment. Can be configured as a stand-alone automatic unit or integrated into a complete production line.
Intelligent Job Management:Advanced software automatically schedules jobs based on priority, optimizes glass utilization, and tracks production data. Barcode or QR code reading capability for automatic job selection.
Exceptional Precision & Consistency:Laser technology achieves micron-level precision (±0.1mm) with consistent results across every piece. Automatic calibration ensures maintained accuracy over extended operation.
High Efficiency & Throughput:Continuous operation with minimal downtime between pieces. Automated loading/unloading eliminates manual handling delays, maximizing machine utilization.
Environmentally Friendly:As a dry etching process, it generates no chemical waste, abrasive dust, or water pollution. The integrated dust extraction system maintains a clean working environment.
2. Premium Component Configuration (Our Competitive Advantage)
We believe in transparency and quality. Here is the power behind our machine:
3. Detailed Product Description
The Automatic Laser Sandblasting Machine utilizes a high-energy laser beam with fully automated material handling to etch and frost glass surfaces, progressively replacing the highly polluting and labor-intensive mechanical sandblasting process.
Fully Automated Material Handling:Integrated auto-loading system picks glass from infeed conveyor or stack, positions it precisely on the worktable, and automatically unloads finished pieces to outfeed conveyor. Continuous operation without operator intervention.
Intelligent Vision Positioning:Optional vision system automatically detects glass position and orientation, compensating for placement variations. Ensures pattern alignment even with manual loading.
Production Line Integration:Designed with standard mechanical and electrical interfaces for seamless integration into existing production lines. Can be configured with infeed/outfeed conveyors, washing machines, and inspection stations.
Automated Job Management:Central control system manages job queues, automatically selecting the correct pattern and parameters based on product identification (manual entry, barcode, or vision recognition).
Batch & Continuous Modes:Operates in batch mode for varied production or continuous mode for high-volume identical pieces. Automatic piece counting and production reporting.
Versatility:Easily handlesrectangularandirregularly shapedglass of various sizes. No tool changes are required; simply modify the software program.
Complete Solution:From the high-quality JPT laser beam to the fully automated handling system, every component is optimized for reliable, unattended operation.
4. Operating Instructions (Summary)
Our machine is designed for ease of use:
1.Setup:Load glass onto infeed conveyor or stack in loading position. Select job from queue or scan barcode for automatic job selection.
2.Automatic Loading:Machine automatically picks glass and positions it precisely on the worktable. Vision system verifies position if equipped.
3.Job Selection:System automatically loads the correct pattern and processing parameters based on job queue or barcode information.
4.Parameter Confirmation:HMI displays job information for operator confirmation. Automatic operation begins upon confirmation.
5.Automatic Execution:Machine processes the glass with the laser head scanning the programmed pattern. Meanwhile, the system prepares the next piece for loading.
6.Automatic Unloading:Upon completion, finished glass is automatically unloaded to outfeed conveyor. Next glass is simultaneously loaded, maintaining continuous operation.
7.Production Monitoring:HMI displays production count, machine status, and alerts for any issues requiring attention.
5. Precautions & Safety
Safety is paramount when operating laser equipment.
Laser Safety:NEVER look directly into the laser beam or its reflections. The machine includes fully interlocked safety enclosures.
Automatic Operation:Maintain safe distance during automatic operation. All safety doors and interlocks must be properly engaged.
Protective Equipment:Operators should wear appropriate laser safety eyewear during maintenance or setup.
Emergency Stop:Familiarize all personnel with emergency stop locations. Test emergency stop system regularly.
Ventilation:Ensure the dust extraction system is functioning correctly to remove any ablated particles.
Cooling:Regularly check the TEYU chiller to ensure water temperature and level are within specified limits.
Maintenance:Keep optical components clean. Follow automatic calibration procedures as recommended.
Qualified Personnel:Only trained personnel should operate, program, or service the machine.
6. Why Choose Jinan Baimai Chengcheng Machinery?
Experience:Established in 2003, we are a high-tech enterprise with nearly 20 years of experience in glass processing machinery.
Certification:We hold ISO 9001 Quality Management System Certification. Our products meet CE standards.
Automation Expertise:We specialize in developing automated solutions that reduce labor costs and increase productivity for our customers.
Global Reach:Our equipment is trusted by customers worldwide, from small workshops to large manufacturing facilities.
Integration Support:We provide comprehensive support for integrating our machines into your production line, including interface design and commissioning.
Commitment:"Customer First" is our motto. We are dedicated to providing you with the best equipment and after-sales service.
7. Call to Action
Ready to automate your glass sandblasting process and achieve 24/7 production with minimal labor costs?
Contact us today for a detailed manual, personalized quote, or to schedule a live demonstration of our automatic technology!
Jinan Baimai Chengcheng Machinery Co., Ltd.
Product Details: Automatic Laser Sandblasting Machine
Manufacturer:Jinan Baimai Chengcheng Machinery Co., Ltd. (BMCC)
Core Advantages:Fully Automatic Operation, Production Line Integration, High Precision, Minimal Labor Requirement.
1. Why Choose Our Automatic Laser Sandblasting Machine ? (Key Advantages)
Our machine is designed to set a new standard for glass surface etching and frosting. Here is why our solution stands out in the global market:
Unmatched Configuration (The Heart of the Machine):We utilize a premium combination of top-tier international and leading domestic brands, ensuring reliability and performance in continuous 24/7 automated operation.
Fully Automated Workflow:From automatic glass loading to precise positioning, laser processing, and finished product unloading, every step is fully automated. One operator can manage multiple machines simultaneously, dramatically reducing labor costs.
Production Line Integration:Designed with standard interfaces for seamless connection to washing machines, conveyors, and other glass processing equipment. Can be configured as a stand-alone automatic unit or integrated into a complete production line.
Intelligent Job Management:Advanced software automatically schedules jobs based on priority, optimizes glass utilization, and tracks production data. Barcode or QR code reading capability for automatic job selection.
Exceptional Precision & Consistency:Laser technology achieves micron-level precision (±0.1mm) with consistent results across every piece. Automatic calibration ensures maintained accuracy over extended operation.
High Efficiency & Throughput:Continuous operation with minimal downtime between pieces. Automated loading/unloading eliminates manual handling delays, maximizing machine utilization.
Environmentally Friendly:As a dry etching process, it generates no chemical waste, abrasive dust, or water pollution. The integrated dust extraction system maintains a clean working environment.
2. Premium Component Configuration (Our Competitive Advantage)
We believe in transparency and quality. Here is the power behind our machine:
| Component | Brand | Advantage |
| Control System & Servo Drive | SYNTEC (Taiwan) | Globally renowned for stability, high precision, and smooth motion control. Optimized for automated production sequences. |
| Laser Source | JPT (Shenzhen) | High quality, stable beam profile, long lifespan, and excellent electro-optical conversion efficiency. Designed for continuous operation. |
| Galvanometer (Scanning Head) | OuYa | High-speed, precise, and stable scanning performance. Rated for 24/7 industrial operation. |
| F-Theta Field Lens | CSDQ | Ensures uniform focus and high-quality beam transmission across the entire working area. |
| Chiller | TEYU | Provides stable temperature control with high cooling capacity for continuous operation. Auto-restart after power failure. |
| Touch Screen HMI | Chuangying | User-friendly interface with automated job management, production monitoring, and diagnostic tools. |
| Guide Rails & Ball Screws | High-Precision (China) | Ensures structural rigidity and positioning accuracy for automated positioning systems. |
| Standard Motor | AIERFA | Robust and reliable performance for auxiliary functions including auto-loading mechanisms. |
| Reducer (Gearbox) | Qijun | Efficient power transmission with low noise. |
| Low Voltage Apparatus | LS (Korea) | A trusted global brand for circuit protection and control in continuous operation. |
| Relays | Schneider (France) | The industry gold standard for electrical safety and durability. |
| Photoelectric Switches | AUTONICS (Korea) | Precise sensing and detection for automated workflows and positioning. |
| Auto-Loading System | Custom-Integrated | Pneumatic or servo-driven loading mechanism for automatic glass feeding. |
| Conveyor Interface | Custom-Integrated | Standardized interface for connection to upstream/downstream equipment. |
3. Detailed Product Description
The Automatic Laser Sandblasting Machine utilizes a high-energy laser beam with fully automated material handling to etch and frost glass surfaces, progressively replacing the highly polluting and labor-intensive mechanical sandblasting process.
Fully Automated Material Handling:Integrated auto-loading system picks glass from infeed conveyor or stack, positions it precisely on the worktable, and automatically unloads finished pieces to outfeed conveyor. Continuous operation without operator intervention.
Intelligent Vision Positioning:Optional vision system automatically detects glass position and orientation, compensating for placement variations. Ensures pattern alignment even with manual loading.
Production Line Integration:Designed with standard mechanical and electrical interfaces for seamless integration into existing production lines. Can be configured with infeed/outfeed conveyors, washing machines, and inspection stations.
Automated Job Management:Central control system manages job queues, automatically selecting the correct pattern and parameters based on product identification (manual entry, barcode, or vision recognition).
Batch & Continuous Modes:Operates in batch mode for varied production or continuous mode for high-volume identical pieces. Automatic piece counting and production reporting.
Versatility:Easily handlesrectangularandirregularly shapedglass of various sizes. No tool changes are required; simply modify the software program.
Complete Solution:From the high-quality JPT laser beam to the fully automated handling system, every component is optimized for reliable, unattended operation.
4. Operating Instructions (Summary)
Our machine is designed for ease of use:
1.Setup:Load glass onto infeed conveyor or stack in loading position. Select job from queue or scan barcode for automatic job selection.
2.Automatic Loading:Machine automatically picks glass and positions it precisely on the worktable. Vision system verifies position if equipped.
3.Job Selection:System automatically loads the correct pattern and processing parameters based on job queue or barcode information.
4.Parameter Confirmation:HMI displays job information for operator confirmation. Automatic operation begins upon confirmation.
5.Automatic Execution:Machine processes the glass with the laser head scanning the programmed pattern. Meanwhile, the system prepares the next piece for loading.
6.Automatic Unloading:Upon completion, finished glass is automatically unloaded to outfeed conveyor. Next glass is simultaneously loaded, maintaining continuous operation.
7.Production Monitoring:HMI displays production count, machine status, and alerts for any issues requiring attention.
5. Precautions & Safety
Safety is paramount when operating laser equipment.
Laser Safety:NEVER look directly into the laser beam or its reflections. The machine includes fully interlocked safety enclosures.
Automatic Operation:Maintain safe distance during automatic operation. All safety doors and interlocks must be properly engaged.
Protective Equipment:Operators should wear appropriate laser safety eyewear during maintenance or setup.
Emergency Stop:Familiarize all personnel with emergency stop locations. Test emergency stop system regularly.
Ventilation:Ensure the dust extraction system is functioning correctly to remove any ablated particles.
Cooling:Regularly check the TEYU chiller to ensure water temperature and level are within specified limits.
Maintenance:Keep optical components clean. Follow automatic calibration procedures as recommended.
Qualified Personnel:Only trained personnel should operate, program, or service the machine.
6. Why Choose Jinan Baimai Chengcheng Machinery?
Experience:Established in 2003, we are a high-tech enterprise with nearly 20 years of experience in glass processing machinery.
Certification:We hold ISO 9001 Quality Management System Certification. Our products meet CE standards.
Automation Expertise:We specialize in developing automated solutions that reduce labor costs and increase productivity for our customers.
Global Reach:Our equipment is trusted by customers worldwide, from small workshops to large manufacturing facilities.
Integration Support:We provide comprehensive support for integrating our machines into your production line, including interface design and commissioning.
Commitment:"Customer First" is our motto. We are dedicated to providing you with the best equipment and after-sales service.
7. Call to Action
Ready to automate your glass sandblasting process and achieve 24/7 production with minimal labor costs?
Contact us today for a detailed manual, personalized quote, or to schedule a live demonstration of our automatic technology!
Jinan Baimai Chengcheng Machinery Co., Ltd.
Product Parameter
| Item | Parameter |
| Laser Source | JPT Fiber Laser |
| Max Output Power | 120W / 300W / Customizable |
| Laser Wavelength | 1064 nm |
| Processing Speed | Customizable (varies by glass type and pattern complexity) |
| Working Area | 1500mm x 2500mm (Customizable) |
| Max Glass Thickness | 3-12mm |
| Positioning Accuracy | ≤ ±0.1 mm |
| Repeat Positioning Accuracy | ≤ ±0.05 mm |
| Automation Level | Fully automatic (loading, processing, unloading) |
| Loading System | Auto-loading from stack or conveyor |
| Unloading System | Auto-unloading to outfeed conveyor |
| Cycle Time | Depends on pattern complexity and glass size |
| Supported Formats | PLT, DXF, BMP, AI, DST, etc. |
| Job Management | Queue-based with barcode/QR option |
| Cooling System | Integrated constant-temperature chiller (TEYU) |
| Control Interface | Chuangying HMI with production monitoring |
| Power Supply | 380V 50Hz / According to customer specifications |
| Communication Interface | Ethernet for MES/ERP integration |
Product Feature
Environmentally Friendly & Precise:Laser ablation replaces chemical solvents and abrasive materials, reducing environmental impact by an estimated70%and eliminating consumable costs entirely.
Fully Automatic Operation:Integrated auto-loading and auto-unloading systems enable continuous, unattended production. Automatic glass positioning and alignment ensure consistent quality without manual intervention.
Intelligent Automation:AI-driven path planning adapts to complex glass contours. Automated job scheduling and batch processing maximize productivity.
Production Line Integration:Designed for seamless integration with upstream and downstream equipment, creating a fully automated glass processing workflow.
Remote Monitoring & Control:Advanced HMI allows for remote operation monitoring, production data collection, and integration with factory management systems (MES/ERP).
Application Areas:
Architectural Decorative Glass:High-volume automated production of patterned glass for building facades and interior design elements.
Smart Home:Continuous processing of smart bathroom mirrors, induction cooker glass panels, and home appliance components.
Consumer Electronics:Automated logo processing on mobile phone covers and smart wearables glass components.
Automotive Glass:High-volume production of decorative and functional patterns on automotive glass components.
Mass Production Environments:Ideal for facilities requiring 24/7 automated operation and minimal labor costs.
